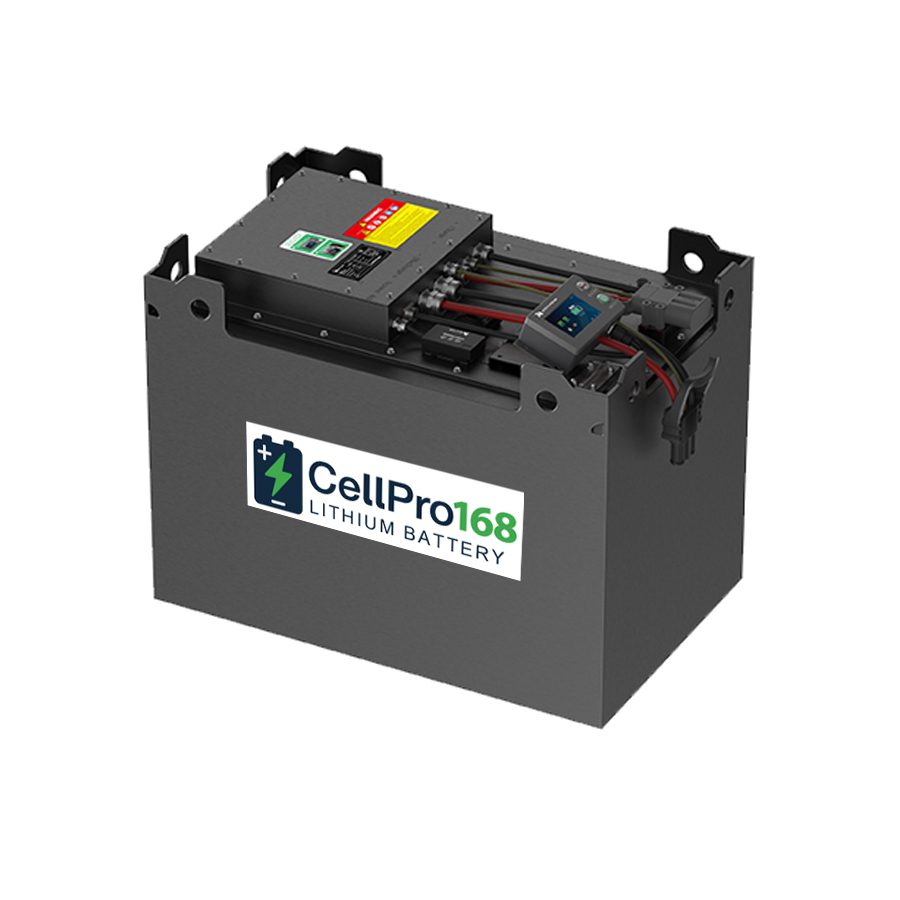

FB48V560BX LiFePO4 Forklift Battery
- Nominal Voltage: 48V (51.2V)
- Nominal Capacity: 560 Ah
- Stored Energy: 28.67 kWh
- Dimension (L×W×H) In Millimeter: 1035 x 530 x 784 mm
- Weight lbs. (kg) With Counterweight: 1180 kg
- Life Cycle: >3,500 times
- IP Rating: IP65
- DIN MODEL：BAT.48V-775AH (5 PzS 775) PB 0169047
What is FB48V560BX LiFePO4 Forklift Battery?
FB48V560BX LiFePO4 forklift battery the strong power from CellPro168 automotive grade batteries will bring you unexpected experience. It was supposed as the most stable and reliable lithium-ion battery for cycling equipment. 10 years battery life and 5 years warranty make you worry-free.
Our smart BMS can deliver you real-time monitoring and communication through CAN. Remote diagnosing and upgrading software, enables you a quick recover from fault operation. And the smart display shows you all critical battery functions in real-time, like voltage, current, and remaining charging time and fault alarm.
For 48V/560A batteries, we have made FB48V560BX to suit various machines, they could be slightly differed in weight and dimensions. We offer custom-tailored batteries if there are no types suiting you.
Green and endure energy supply:
- You won’t run up your battery even in the end of one shift, because the lithium-ion battery can be quickly recharged and stores about three times energy than a conventional battery.
- Our batteries can work down to -4°F ( -20°C). With their self-heating function (optional), they can heat from -4°F to 41°F in an hour.
- Support multi-shift operation and provides peak performance with the advantage of opportunity charge.
- Remote monitoring, communicating and controlling CellPro168 batteries through CAN.
Widely use in various forklift brands:
Our 48V Lithium forklift batteries can perform well in class 1 forklifts and are suitable for medium-balanced forklifts. Otherwise, our 48V batteries are highly compatible and can be generally applied in these famous forklift brands: Toyota, Yale, Hyster, Crown, TCM, Linde, Doosan, etc.
BMS
BMS software ensures the battery to provide peak performance in operation, and delivers longer run times between charging, which can maximize the total battery lifespan. The owner can know the current situations of the battery via fault display and fault alarm.
Battery pack module
CellPro168’s battery pack module consists of lithium-iron phosphate cells. Lithium-iron phosphate encompasses multiple chemistries, which results in variations of energy and power density, lifespan, cost and safety.
Tech & Specs FB48V560BX LiFePO4 Forklift Battery
| Nominal Voltage / Discharge Voltage Range | 48V (51.2V) | DIN MODEL | BAT.48V-775AH (5 PzS 775) PB 0169047 |
| Stored Energy28.67 | 28.67 kWh | Dimension(L×W×H)
For Reference |
1035 x 530 x 784 mm |
| Weight lbs.(kg)
With Counterweight |
1180 kg | life Cycle | >3,500 times |
| Continuous Discharge | 280 A | Maximum Discharge | 420 A (30s) |
| Charge | -4°F~131°F ( -20°C ~ 55°C) | Discharge | -4°F~131°F ( -20°C ~ 55°C) |
| Storage (1 month) | -4°F~113°F ( -20°C~45°C) | Storage (1 year) | 32°F~95°F ( 0°C~35°C) |
| Casing Material | Steel | IP Rating | IP65 |
